LDCS

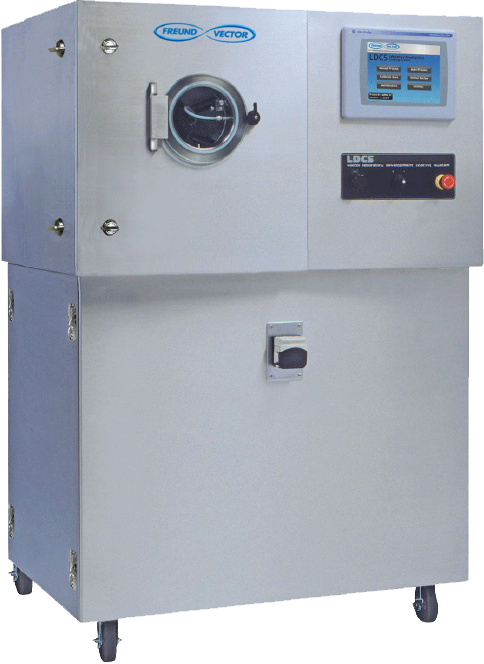

The LDCS HI-COATER® Laboratory Development Coating System is designed with the unique capability of doing process feasibility, development and clinical batches with six fully perforated coating pans available. This flexibility allows the LDCS HI-COATER® to be used for a wide range of development coating processes. With a standard offer that includes an anti-marking coating pan, a recipe driven control system, an anti-bearding spray gun and quick delivery, the LDCS HI-COATER® provides the best solution for your developmental pan coating requirement.
For Developmental Pan Coating Processes
Flexible Processing Capabilities
- Portable, Self-Contained System
- Six Interchangeable Fully Perforated Pans Rate Volume: 0.5 L, 1.5 L, 2.5 L, 4.0 L, 6.0 L, 8.0 L
- Batch Ranges: 25% to 100% of Brim Volume
- Quick-Change Mounting System
- Integral Drain for Rapid Cleaning
Anti-Bearding Spray Gun
- Atomization and Spray Pattern Control for Consistent Coating Processes
- Easily Removable Spray Gun
Anti-Marking Coating Pans
- Mirror-Smooth Finish of Pan Interior
- Removable Precision Mixing Baffles
- Removable Anti-Slide Baffles
- Abrasion Resistant Perforations
Integrated Peristaltic Solution Pump
- Positioned on Front Cover for Quick Process Changeover
Color Touchscreen Control System
- Automatic Mode or Manual Mode
- Validatable Process Control
- Inlet Airflow and Pan Pressure
- Exhaust or Inlet Temperature
- Spray Rate and Delivery Amount
LDCS-Micro
HI-COATER® Laboratory Development Coating System
Technical Specifications
| LDCS HI-COATER® Technical Specifications | |||||
| 进风温度：80℃（最大值） | 压缩空气量：29m3/hr @ 7bar | ||||
| 处理风量：34 - 170 m3/hr | 供电规格：230/3/60 or 400/3/50 | ||||
| 供液速率：1.4 - 50 mL/min | 设备重量：295 kg（近似值） | ||||
| 锅体转速：2 – 35 RPM | 设计标准：CE, UL, NFPA, CSA | ||||
| 液体孔/喷雾帽：0.7mm/3.1mm | 溶剂等级：可选 | ||||
| Pan Diameters | |||||
| 0.5 L | 1.5 L | 2.5 L | 4.0 L | 6.0 L | 8.0 L |
| 200mm | 290mm | 330mm | 370mm | 405mm | 450mm |
