LDCS-Micro
The Freund-Vector Corporation LDCS-Micro HI-COATER® Laboratory Development Coating System is a portable, table top design with the unique capability of performing process feasibility, development and clinical batches, utilizing two (2) available fully perforated coating pan sizes. This is a portable, self-contained film coating system. With a standard offer that includes an anti-marking coating pan, a recipe driven control system, an anti-bearding spray gun and quick delivery, the LDCS-Micro HI-COATER® provides the best solution for your developmental pan coating requirement.
For Developmental Pan Coating Processes
Flexible Processing Capabilities
- Portable, Self-Contained System
- Six Interchangeable Fully Perforated Pans: Rated Volume: 0.5 L and 1L
- Batch Ranges: 25% to 100% of Brim Volume
- Quick-Change Mounting System
- Integral Drain for Rapid Cleaning
Anti-Bearding Spray Gun
- Atomization and Spray Pattern Control for Consistent Coating Processes
- Easily Removable Spray Gun
Anti-Marking Coating Pans
- Mirror-Smooth Finish of Pan Interior
- Removable Precision Mixing Baffles
- Anti-Slide Baffles Formed into Pan
- Abrasion Resistant Perforations
Integrated Peristaltic Solution Pump
- Positioned on Front Cover for Quick Process Changeover
Color Touchscreen Control System
- Automatic Mode or Manual Mode
- Validatable Process Control
- Inlet Airflow and Pan Pressure
- Exhaust or Inlet Temperature
- Spray Rate
LDCS-Micro
HI-COATER® Laboratory Development Coating System

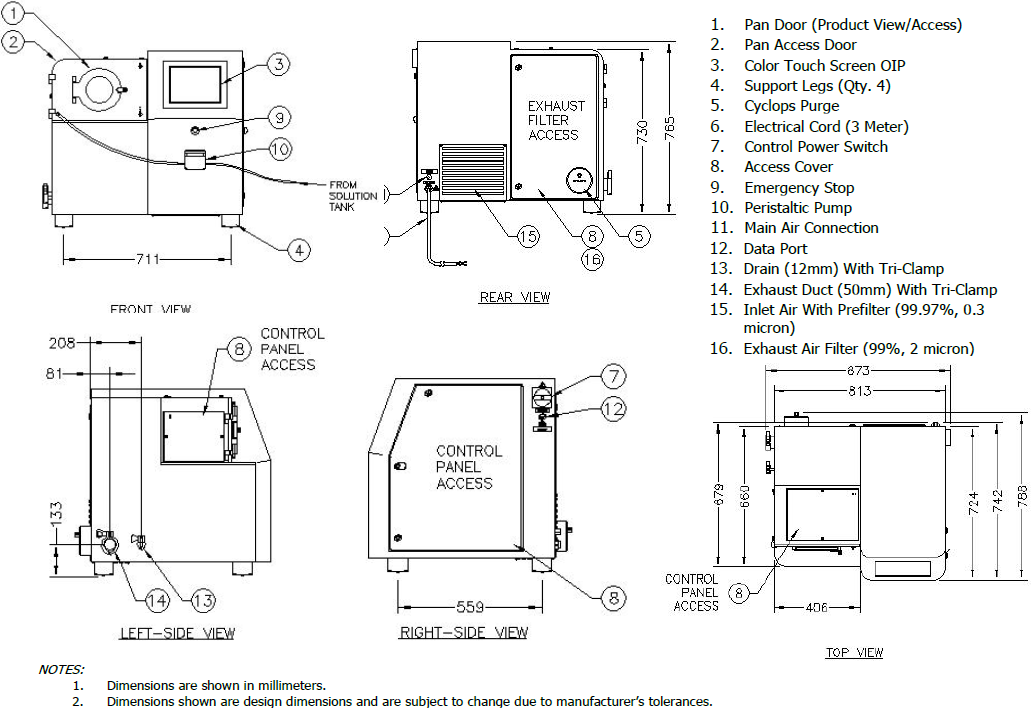

| 1.包衣锅门(视窗/入口) | 5.独眼阀 | 9.紧急停止按钮 | 13.快速卡箍连接式排水阀（12mm） |
| 2.锅体检修门 | 6.电线（3米 | 10.蠕动泵 | 14.快速卡箍连接式出风管 |
| 3.彩色触屏OIP | 7.电源控制开关 | 11.主气源接口 | 15.带预过滤的进风管（99.97%，0.3µm） |
| 4.支撑脚（Qty.4） | 8.舱口盖 | 12.数据接口 | 16.出风过滤器（99%，2µm） |
TECHNICAL SPECIFICATIONS
| LDCS-Micro HI-COATER® Technical Specifications | |||
| 进风温度：80℃（最大值） | 压缩空气量：29m3/hr @ 7bar | ||
| 处理风量：25 - 50 m3/hr | 供电规格：230/50-60/1 | ||
| 供液速率：5 - 15 mL/min | 设备重量： 160 kg（近似值） | ||
| 锅体转速：2 – 35 RPM | 设计标准：CE, ATEX, UL, NFPA, CSA, VDI 2263 | ||
| 液体孔/喷雾帽：0.7mm/3.1mm | 溶剂等级：可选 | ||
| Pan Diameters | |||
| 0.5 L | 203.2mm | 0.12 - 0.5 L | 0.1 kg - 0.4 kg |
| 1.0 L | 203.2mm | 0.25 - 1.0 L | 0.2 kg - 0.8 kg |
