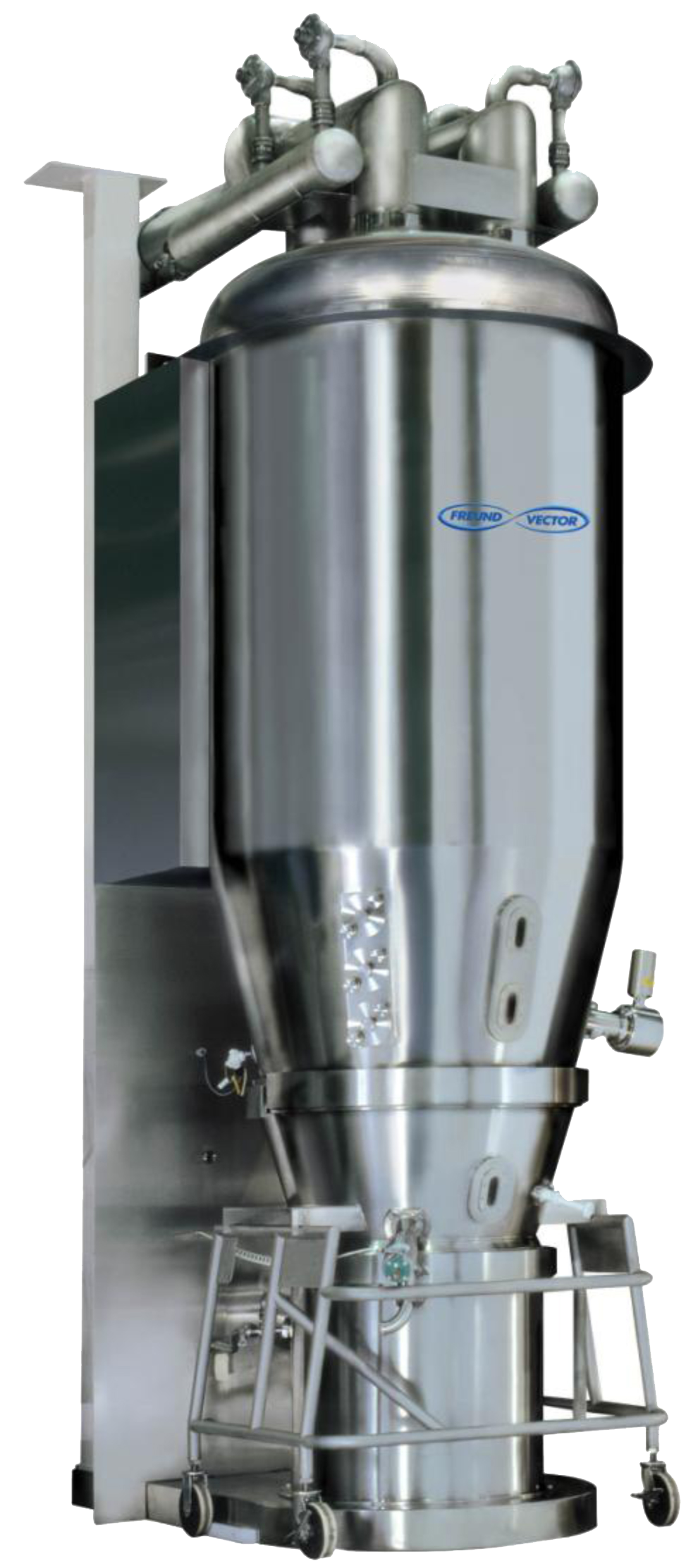

VFC-X
The VFC-X FLO-COATER® Fluid Bed System is uniquely engineered to meet the specific requirements for every installation. Every VFC-X FLO-COATER® is backed by Freund-Vector Corporation’s comprehensive range of services, including: product and process development, process scale-up and transfer, calibration and maintenance programs, and proactive project management. Simple to use, economical and designed for maximum processing effectiveness, the VFC-X FLO-COATER® series is the ideal solution for your current and future fluid bed processing requirements.
For Pilot and Production Scale Granulation, Drying and Coating Processes
Flexible System Configurations
- Top Spray Granulation and Drying Processes
- Scalable Capacities Up To 1900L
- Non-Inflatable, Removable Air Seals For Easy Cleaning
Engineered Reduced Process Times
- Increased Product-To-Filter Distance For Increased Airflow and Spray Rates
Quick Changeover Design
- 12 Bar Pressure Tested Construction
- Cartridge Filters For Superior Particle Retention
- Easily Removable Air Seals For Cleaning
- In-Wall Design Minimizes Facility Floor Space
- Optional CIP Configuration Available
- Stainless Steel Cartridge Filters
- Single Point Connection For Cleaning Solutions
Color Touchscreen Control System
- Validatable Process Control
- Two Modes of Operation
- Automatic — Recipe Driven
- Manual Mode
- Optional COMPU 4® Automated Control Sytem
- 21 CFR Part 11 Data and Recipe Handling System
- Control of Entire Granulation Suite With One OIP
Ideal Design For Granulation Suites
- Full Range of Product, Solution and Air Handling Options 选项
- Product Handling By Mechanical, Vacuum or Gravity
VFC-X
FLO-COATER® Fluid Bed Systems
| 1.空气密封圈 | 5.支撑架 | 9.过滤器脉冲累加器 | 13.物料温度探针 | 17.气压调节器 | 21.滤器沉降气缸 |
| 2.膨胀/过滤室 | 6.物料室装载车 | 10.观察窗 | 14.检测灯窗口 | 18.可选CIP口 | |
| 3.物料室 | 7.排风管 | 11.可选喷枪口 | 15.过滤筒 | 19.可选抽真空阀 | |
| 4.进风室 | 8.进风管 | 12.取样口 | 16.排空和关闭阀 | 20.可选真空卸料阀 |
TECHNICAL SPECIFICATIONS
| MODEL | STANDARD SIZE | INCREASED SIZE | AIRFLOW | ||
| Volume（L） | Working Capacity（kg） | Volume（L） | Working Capacity（kg） | m3/hr | |
| VFC-30X | 100 | 15 - 50 | 120 | 18 – 60 | 3000 |
| VFC-60X | 220 | 33 - 110 | 250 | 38 – 125 | 4500 |
| VFC-120X | 420 | 63 - 210 | 500 | 75 – 250 | 6000 |
| VFC-200X | 660 | 99 – 330 | 800 | 120 – 400 | 8000 |
| VFC-300X | 1200 | 180 – 600 | 1570 | 235 – 785 | 9500 |
| VFC-500X | 1570 | 235 - 785 | 1900 | 285 - 950 | 12000 |
